Description
- Brand: Wenger
- Type: Gas-Fired 2-Pass Screen Belt Drying System
- Model: 30G53-2
- Date of Manufacture: 2012
- Each Dryer Pass has Five 2.1 m (7.0 foot) Long Sections of Dryer for a Total Drying Area of 65 Square Meters (700 Square Feet)
- Three Sections of Attached External Cooler for a Total Cooling Area of 19.5 Square Meters (210 Square Feet)
Construction:
- Maximum temperature of Insulated Enclosure is 175 °C (350 °F)
Housing in form of welded mild steel tubular frame with insulated, mild steel panels
All side panels where practical will be doors which can be opened for cleaning inside of unit
Housing built in 2.1 m (7-foot) sections and designed for containerization:
Insulation is high temperature fiberglass
Top insulation is 75 mm (3 inch), doors are 62 mm (2.5 inch), floors and end section sides are 50 mm (2 inch)
Stainless Steel in the following High-Corrosion areas:
- Interior of return section
- Ceiling above product
- Dryer external side door interiors
- Floor below conveyors
- Flashing and airlock curtains

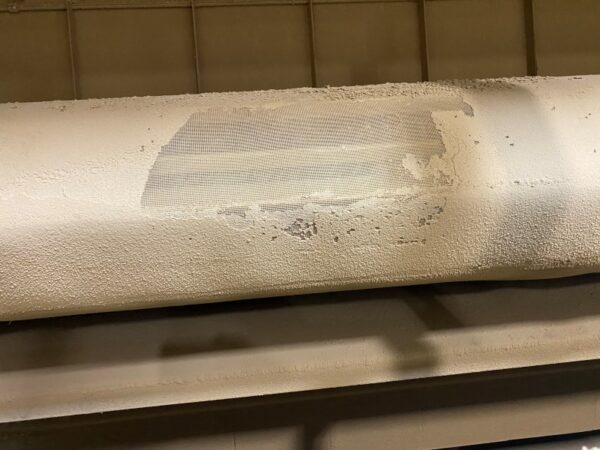

- 10 ft Wide Product Conveyors are Special High Temperature PPS Mesh Screen Carried on Support Frames (Maximum temperature 350° F (177° C))
- Main Box Dimensions: Approximately 14′ W x 64′
- Power: 460 VAC / 3 Phase / 60 Hz
- Condition: Very Good (Used very little as the owners had another type of drying system. Probably has no more than (3) months of actual operating use)
- Complete with outfeed components and belt screen. (These are not shown in the photos) No infeed conveyors
- Feeding section, cooling section, output section, and conveyor belt have been removed from the exit end of the system to make room for other equipment subsequently installed. However, those items are still at the site although not shown in the photos
- New Value: $1,000,000
VIEW PDFS:
Wenger Gen Dim 12961101 Dryer-Clr 2 Pass
Wenger Gas-Fired Calculated Dryer Cooler Mass Flow Rates
