Description

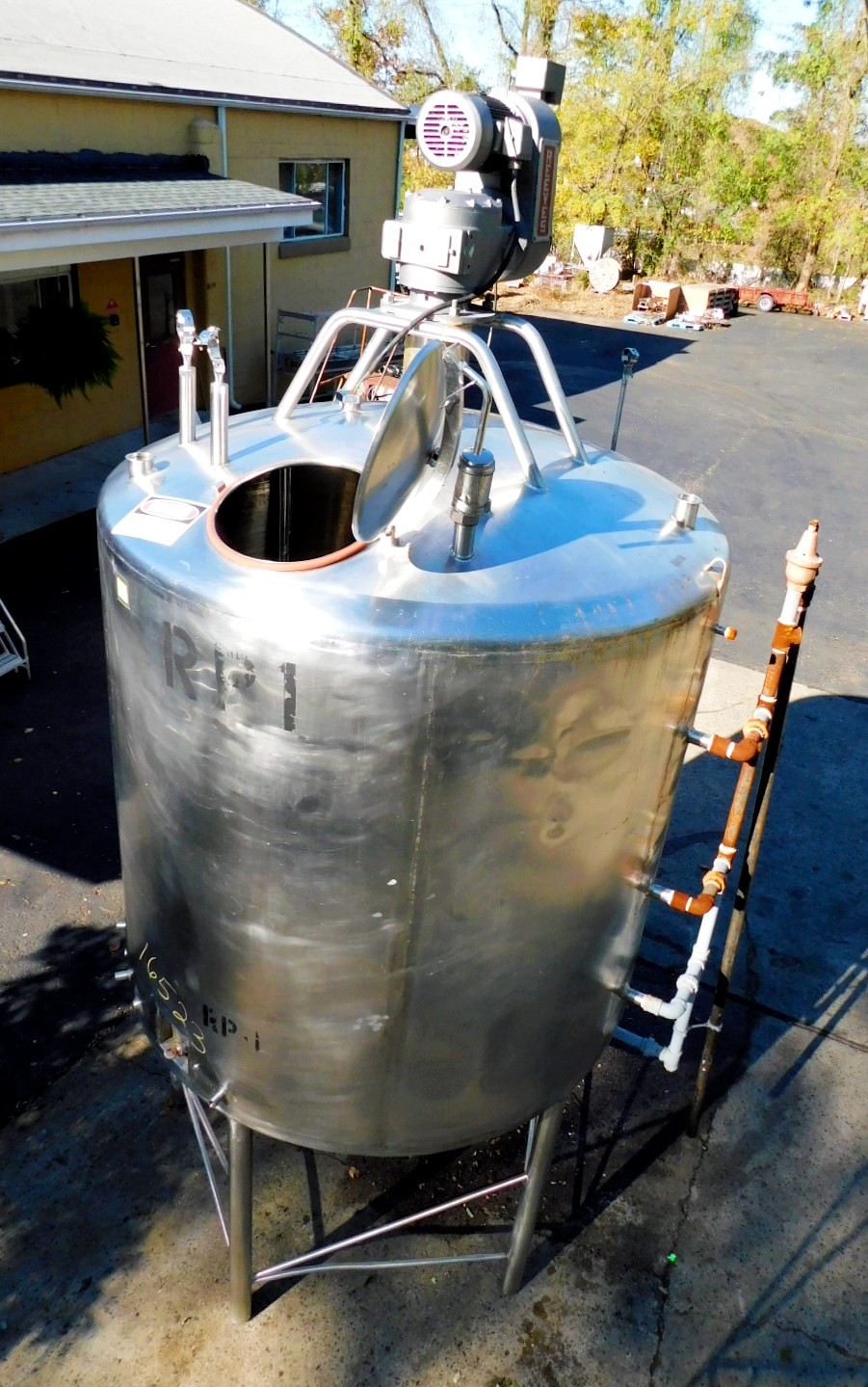

- Type: Fully Jacketed Vertical Scrape Agitated Mix Tank
- Capacity: 1500 Gallons
- Closed Top
- Slight Cone Bottom
- 76″ ID x 78″ Straight Side
- Full Coil Jacketed Side Walls and Bottom
- Stainless Steel Shrouding
- Jacket Tested to 20 Psi
- Full Scrape Agitator With Hinged Polymer Scrapers Along Vertical Walls
- Facilities For Additional Scrapers On Cone Bottom
- Agitator Driven by Reeves Variable Drive
- 7.5 Horsepower
- Power: 230/460 VAC / 3 Phase / 60 Hz / 18.4/9.2 Amps
- Hanging Mount For Adjustable Baffle
- Dish Top With 18″ Manway
- Hinged, Gasketed Dome Cover
- (3) 3″ Top Inlet With Tri Clamp And Acme Threaded Bevel Seat Connections
- 2″ Threaded Port With Vent Cap
- 3/4 Sleeve Opening With Straight Connection
- Two Opposing Lift Lugs
- 186″ Total Height
- 3″ Center Bottom Outlet With Plug Valve
- Three Internal Temperature Wells
- 1.5″ Side Bottom Connection At Bottom Of Straight Wall Above Cone
- Shroud Has Bottom Condensate Drain
- Mounted On 5 Interconnected Legs With Threaded Leveling Feet
- Vessel Has No Tag, Possibly Made By Cherry Burrell
- Previously Used for Pharmaceuticals
